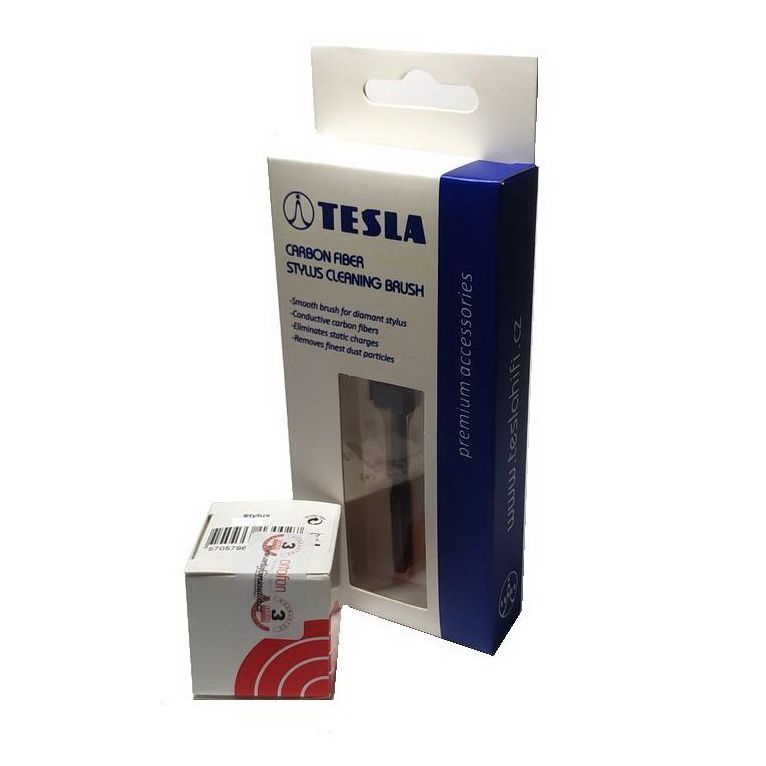

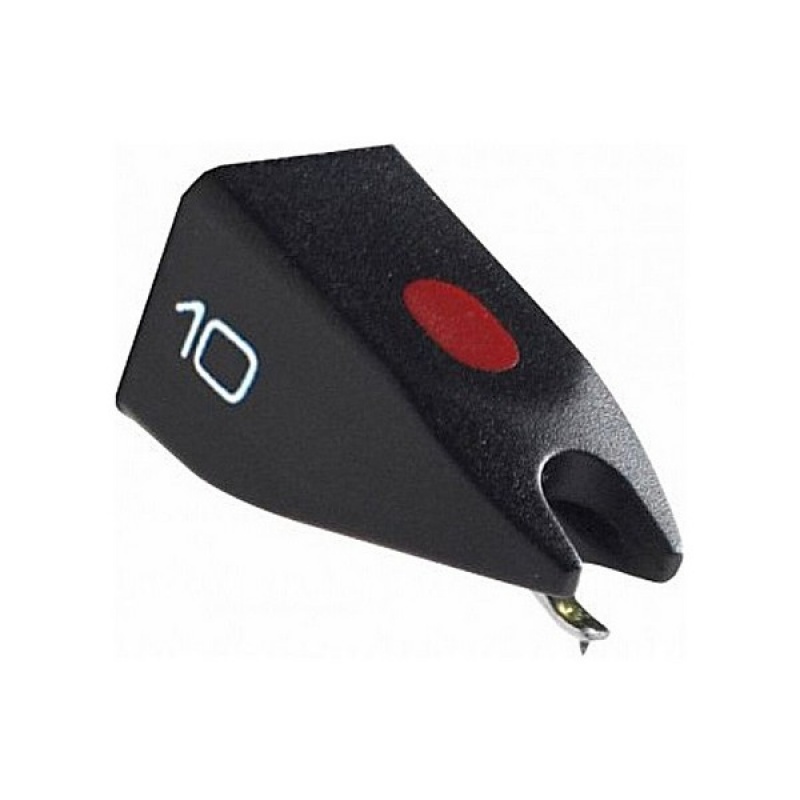

Náhradní hrot Ortofon Stylus 10 + TESLA Static-Off Carbon Fiber Stylus Brush - TE06
Náhradní hrot pro přenosky OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, ConcordeEC 10, TM 10H, LMB 12, SMB 12, LMA 12
Technické parametry:
10 STYLUS
Frequency range 20-24.000 Hz
Frequency response 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) 70 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,5 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Stylus colour Black
